Griffin Filters

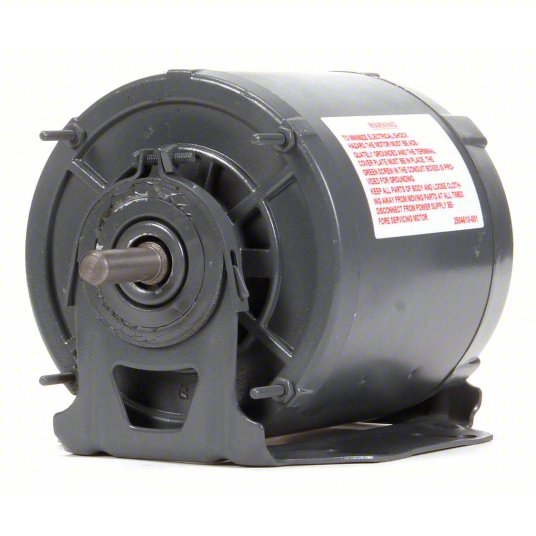

Replacement Motor for 36 IS and 36 JS (Motor 1/6 HP, 1800 RPM, 48T 1/60 Hz/115 V, TE)

Replacement Motor for 36 IS and 36 JS (Motor 1/6 HP, 1800 RPM, 48T 1/60 Hz/115 V, TE)

SKU:300 1/6 1800 48T

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out

Output HP : 1/6 HP
Output KW : 0.13 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 3.7 A
Speed : 1140 RPM
Service Factor : 1
Phase : 1
Efficiency : 50 %
Duty : Continous
Insulation Class : B
KVA Code : L
Frame : 48
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Split Phase
Starting Method : SM
Poles : 6
Rotation : Counterclockwise/Clockwise
Mounting : Resilient Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.57 in
Frame Length : 5.79 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
